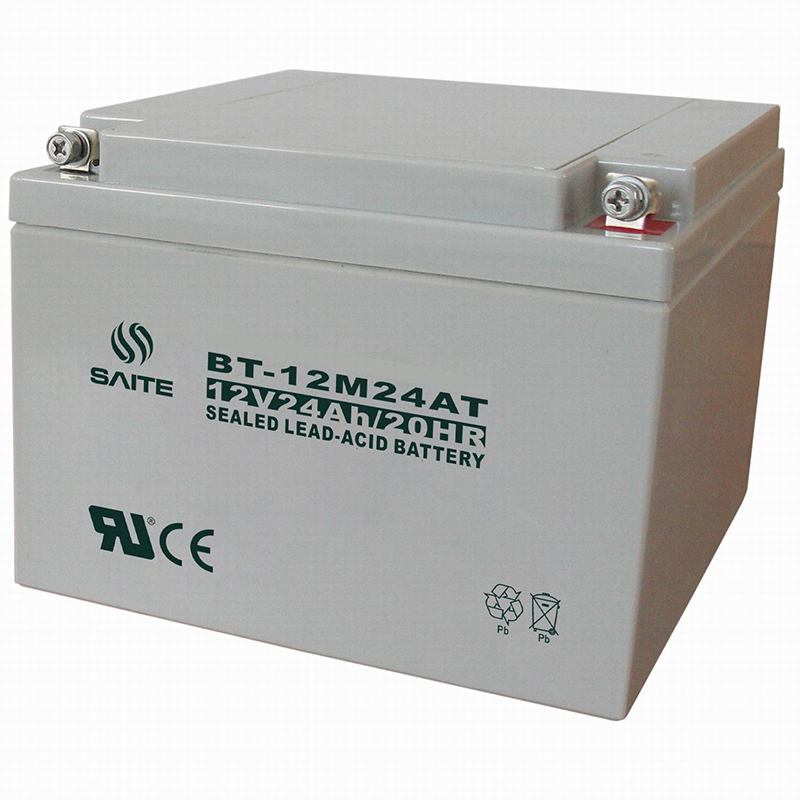

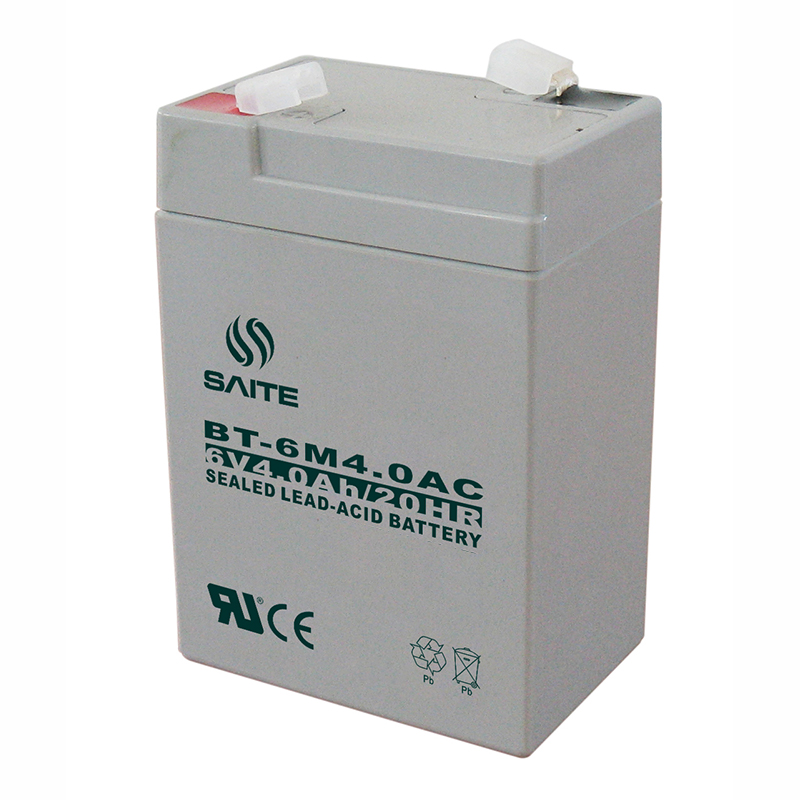

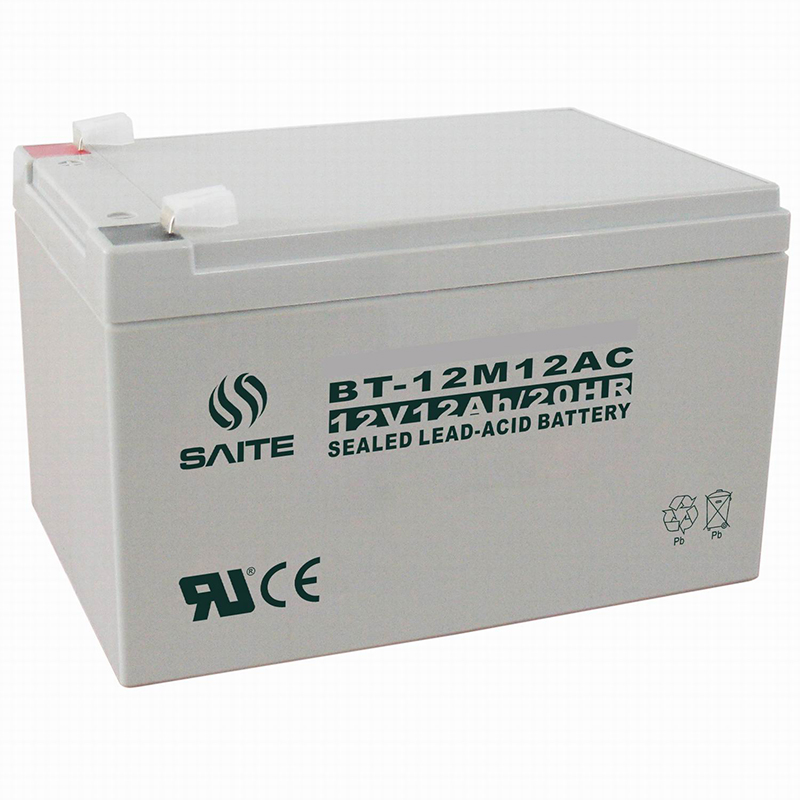

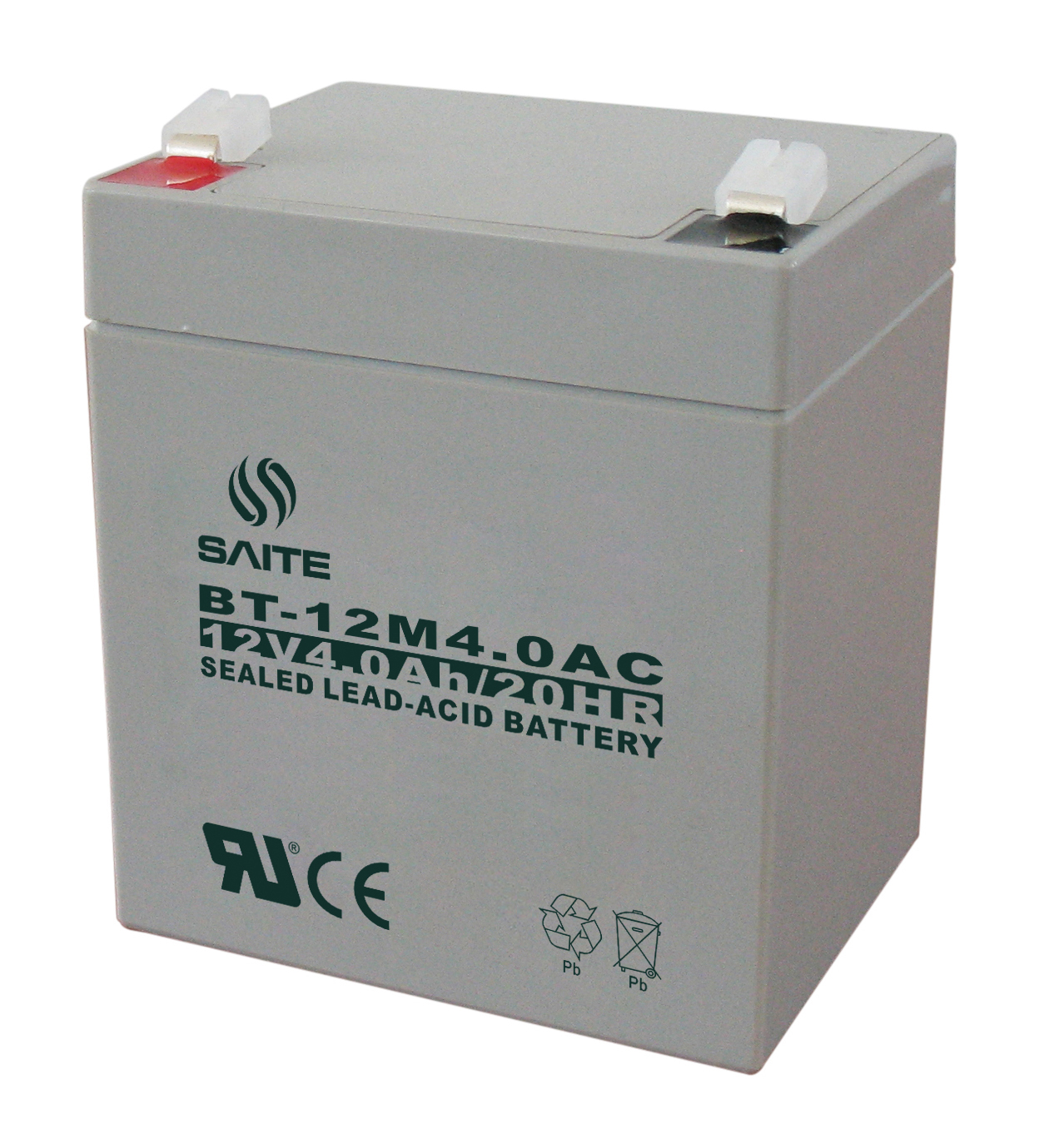

Maintenance Free Sealed Lead Acid AGM VRLA Battery
Features:
- Designed floating charging service life: 8 years （25C）
- Sealed and maintenance free operation
- Safety valve installation for explosion proof
- Low self-discharge characteristic
- Wide operating temperature range from 0C~40C
- Lead calcium Aluminum tin alloy high energy, prevent corrosion.
Application:
- Measuring equipment and instrucment
- Telephone sets
- Lighting equipment
- Security systems
- UPS power supply
Specifications
| Type | Nominal Voltage | Capacity | Dimension(mm/Kg[(5%)]) | Terminal | ||||
| (V) | (Ah) | Length | width | Height | Total Height | Weight | ||
| MG1.2-6 | 6 | 1.2 | 97 | 24 | 52 | 58 | 0.29 | T1 |
| MG1.3-6 | 6 | 1.3 | 97 | 24 | 52 | 58 | 0.29 | T1 |
| MG2.8-6 | 6 | 2.8 | 66 | 33 | 97 | 104 | 0.49 | T1 |
| MG3.2-6 | 6 | 3.2 | 134 | 35 | 61 | 67 | 0.66 | T1 |
| MG3.3 | 6 | 3.2 | 134 | 35 | 61 | 67 | 0.66 | T1 |
| MG3.5-6 | 6 | 3.5 | 134 | 35 | 61 | 67 | 0.68 | T1 |
| MG4-6 | 6 | 4 | 70 | 47 | 101 | 107 | 0.7 | T1 |
| MG4.5-6 | 6 | 4.5 | 70 | 47 | 101 | 107 | 0.75 | T1 |
| MG5-6 | 6 | 5 | 70 | 47 | 101 | 107 | 0.83 | T1 |
| MG6-6 | 6 | 6 | 70 | 47 | 101 | 107 | 0.93 | T1 |
| MG7-6 | 6 | 7 | 151 | 34 | 94 | 100 | 1.15 | T1/T2 |
| MS7.2-6 | 6 | 7.2 | 150 | 34 | 94 | 100 | 1.17 | T1/T2 |
| MG8-6 | 6 | 8.5 | 151 | 34 | 94 | 100 | 1.35 | T1/T2 |
| MG9-6 | 6 | 9 | 151 | 34 | 94 | 100 | 1.4 | T1/T2 |
| MG10-6 | 6 | 10 | 151 | 50 | 94 | 100 | 1.6 | T1/T2 |
| MG12-6 | 6 | 12 | 151 | 50 | 94 | 100 | 1.82 | T1/T2 |
| MG20-6 | 6 | 20 | 157 | 83 | 125 | 130 | 3.6 | T3 |
| MG1.2-12 | 12 | 1.2 | 97 | 43 | 52 | 58 | 0.55 | T1 |
| MG1.3-12 | 12 | 1.3 | 97 | 43 | 52 | 58 | 0.61 | T1 |
| MG1.9-12 | 12 | 1.9 | 178 | 35 | 61 | 67 | 0.8 | T1 |
| MG2-12 | 12 | 2 | 178 | 35 | 61 | 67 | 0.82 | T1 |
| MG2.3-12 | 12 | 2.3 | 178 | 35 | 61 | 67 | 0.92 | T1 |
| MG2.5-12 | 12 | 2.5 | 70 | 48 | 98 | 104 | 0.8 | T1 |
| MG2.6-12 | 12 | 2.6 | 70 | 48 | 98 | 104 | 0.85 | T1 |
| MG2.8-12 | 12 | 2.8 | 70 | 48 | 98 | 104 | 0.9 | T1 |
| MG3.2-12 | 12 | 3.2 | 134 | 67 | 61 | 67 | 1.3 | T1 |
| MG3.3-12 | 12 | 3.3 | 134 | 67 | 61 | 67 | 1.36 | T1 |
| MG4-12 | 12 | 4 | 90 | 70 | 101 | 107 | 1.4 | T1 |
| MG4.5-12 | 12 | 4.5 | 90 | 70 | 101 | 107 | 1.47 | T1 |
| MG5-12 | 12 | 5 | 90 | 70 | 101 | 107 | 1.67 | T1 |
| MG6-12 | 12 | 6 | 90 | 70 | 101 | 107 | 1.82 | T1 |
| MG7-12 | 12 | 6 | 151 | 65 | 94 | 100 | 2.1 | T1/T2 |
| MG7.2-12 | 12 | 7 | 151 | 65 | 94 | 100 | 2.25 | T1/T2 |
| MG7.5-12 | 12 | 7.2 | 151 | 65 | 94 | 100 | 2.3 | T1/T2 |
| MG8.5-12 | 12 | 7.5 | 151 | 65 | 94 | 100 | 2.32 | T1/T2 |
| MG9-12 | 12 | 9 | 151 | 65 | 94 | 100 | 2.65 | T1/T2 |
| MG10-12 | 12 | 10 | 151 | 98 | 95 | 101 | 3.5 | T2 |
| MG12-12 | 12 | 12 | 151 | 98 | 95 | 101 | 3.6 | T2 |
| MG15-12 | 12 | 15 | 181 | 77 | 167 | 167 | 5 | T3/T8 |
| MG17-12 | 12 | 17 | 181 | 77 | 167 | 167 | 5.2 | T3/T8 |
| MG18-12 | 12 | 18 | 181 | 77 | 167 | 167 | 5.4 | T3/T8 |
| MG20-12 | 12 | 20 | 181 | 77 | 167 | 167 | 5.8 | T3/T8 |
| MG22-12 | 12 | 22 | 181 | 77 | 166 | 166 | 6.3 | T8 |
| MG24-12 | 12 | 24 | 166 | 175 | 125 | 125 | 8 | T3/T8 |
| MG25-12 | 12 | 24 | 165 | 125 | 175 | 185 | 8.1 | T6/T8 |
| MG26-12 | 12 | 26 | 165 | 176 | 127 | 127 | 8.1 | T3 |
| MG28-12 | 12 | 28 | 166 | 175 | 125 | 125 | 8.8 | T3/T8 |
