Front Terminal AGM Battery
Front Terminal Type AGM Battery
- Product description: Front Terminal Type AGM Battery / Deep Cycle Battery/ AGM Gel Battery for UPS power supply
Front Terminal Type AGM VRLA Battery / AGM Deep Cycle Battery/ AGM Gel Battery
Features
- Thick plates and high-density active material
- Excellent recovery from deep discharge
- Wide operating temperature range from -10C~40C
Application:
- UPS Power Supply
- Tele-Communication Equipment
- Power Station
- Solar/Wind Energy storage system
Specifications
| Model | Voltage | Capacity | Dimension(mm) | Weight± 2% | |||
| ( V ) | (Ah) | L | W | H | T.TH | (kg) | |

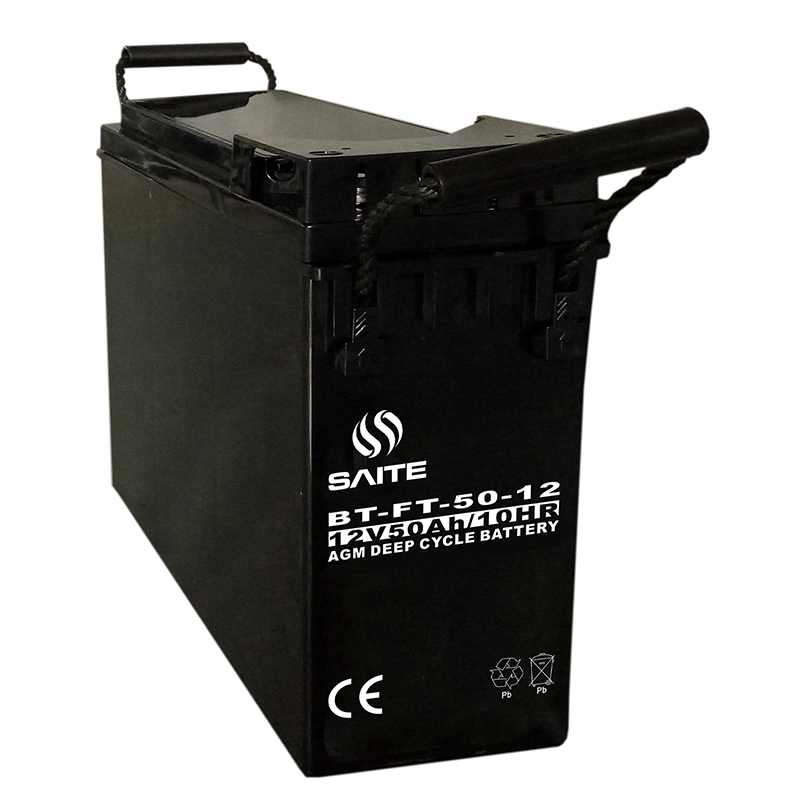

| FT-50-12 | 12 | 50 | 291 | 106 | 223 | 231 | 16.3 |
| FT-55-12 | 12 | 55 | 291 | 106 | 223 | 231 | 16.8 |

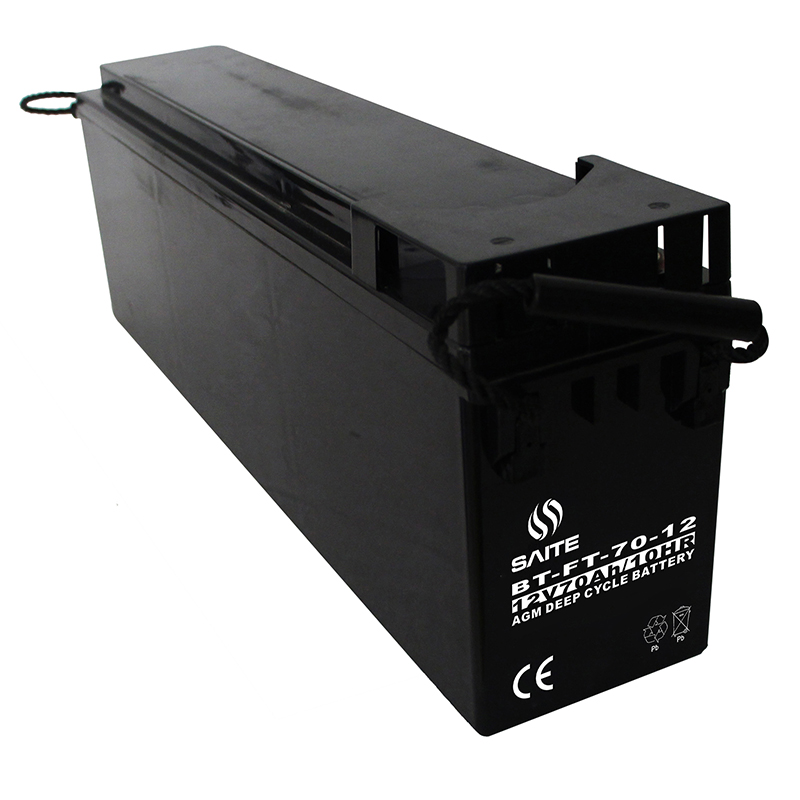

| FT-70-12 | 12 | 70 | 562 | 115 | 187 | 196 | 23 |
| FT-75-12 | 12 | 75 | 562 | 115 | 187 | 196 | 24.5 |
| FT-80-12 | 12 | 80 | 562 | 115 | 187 | 196 | 26 |
| FT-90-12 | 12 | 90 | 410 | 110 | 287 | 295 | 28 |
| FT-100-12 | 12 | 100 | 410 | 110 | 287 | 295 | 30.5 |

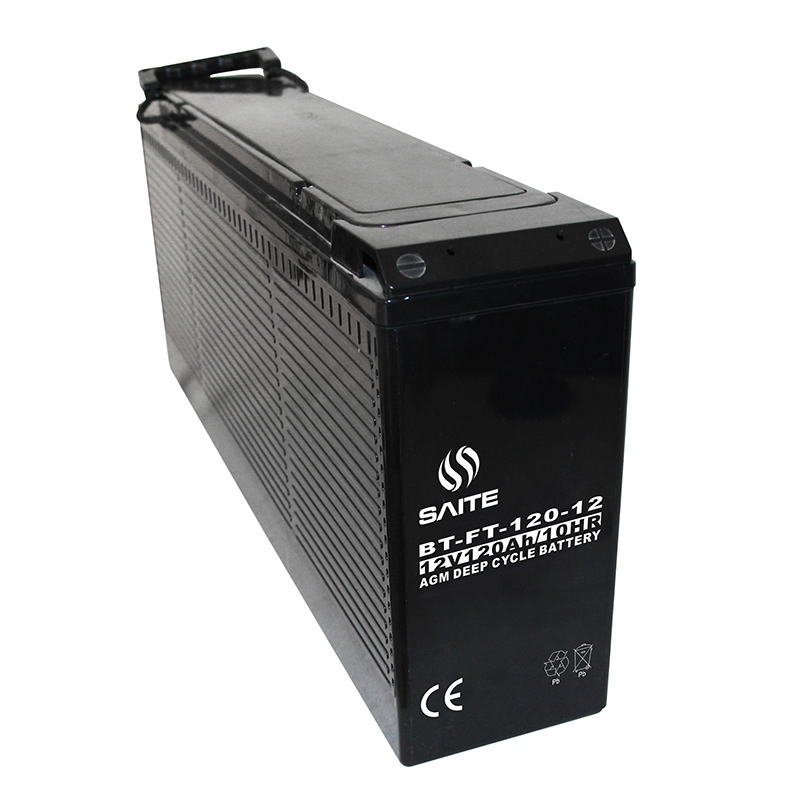

| FT-120-12 | 12 | 120 | 552 | 110 | 240 | 240 | 35 |
| FT-140-12 | 12 | 140 | 566 | 110 | 290 | 290 | 42.5 |

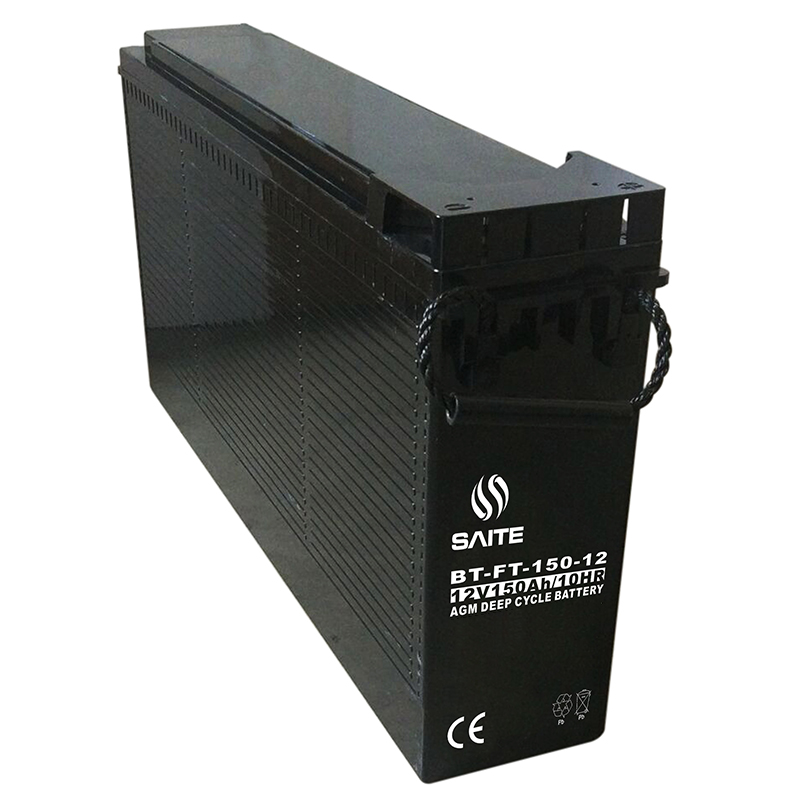

| FT-150-12(A) | 12 | 150 | 566 | 110 | 290 | 290 | 44 |
| FT-150-12(B) | 12 | 150 | 561 | 125 | 317 | 317 | 46.3 |
| FT-165-12 | 12 | 165 | 561 | 125 | 317 | 317 | 49.2 |
| FT-175-12 | 12 | 175 | 561 | 125 | 317 | 317 | 54 |
| FT-180-12(B) | 12 | 180 | 561 | 125 | 317 | 317 | 55.5 |

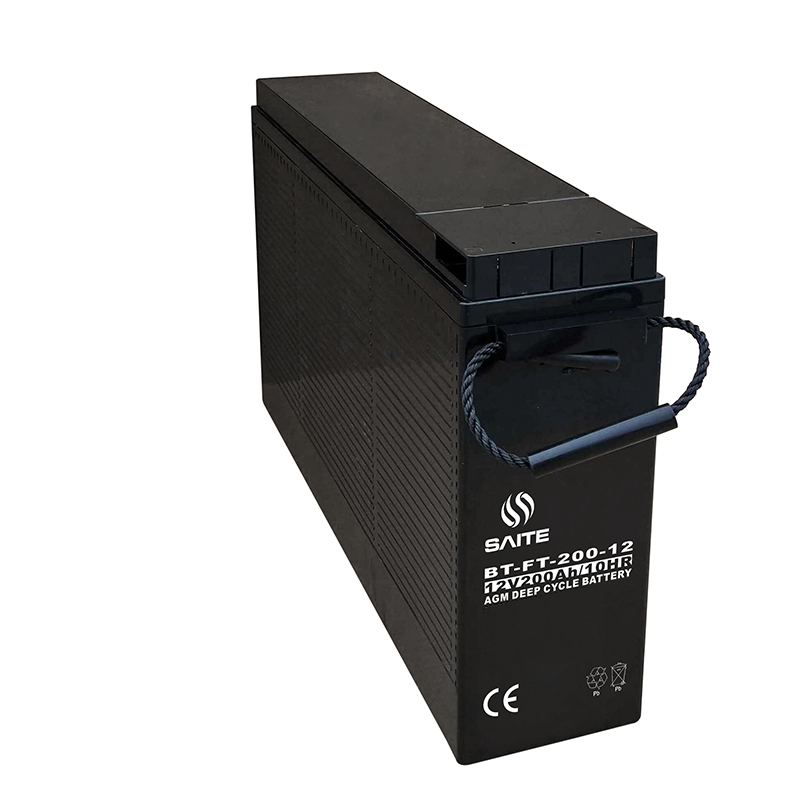

| FT-200-12 | 12 | 200 | 561 | 125 | 317 | 317 | 58.3 |
