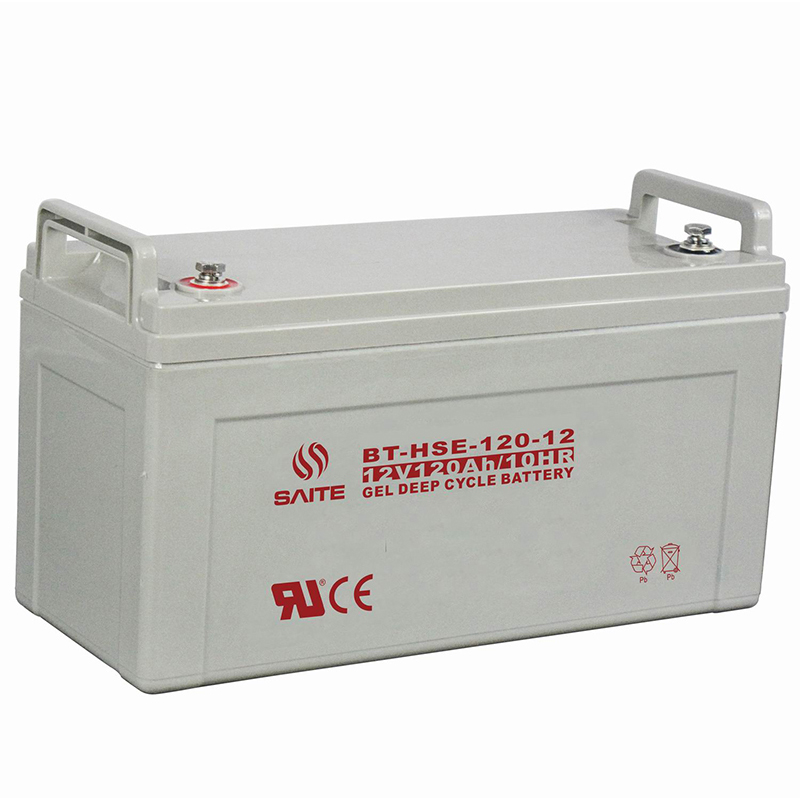

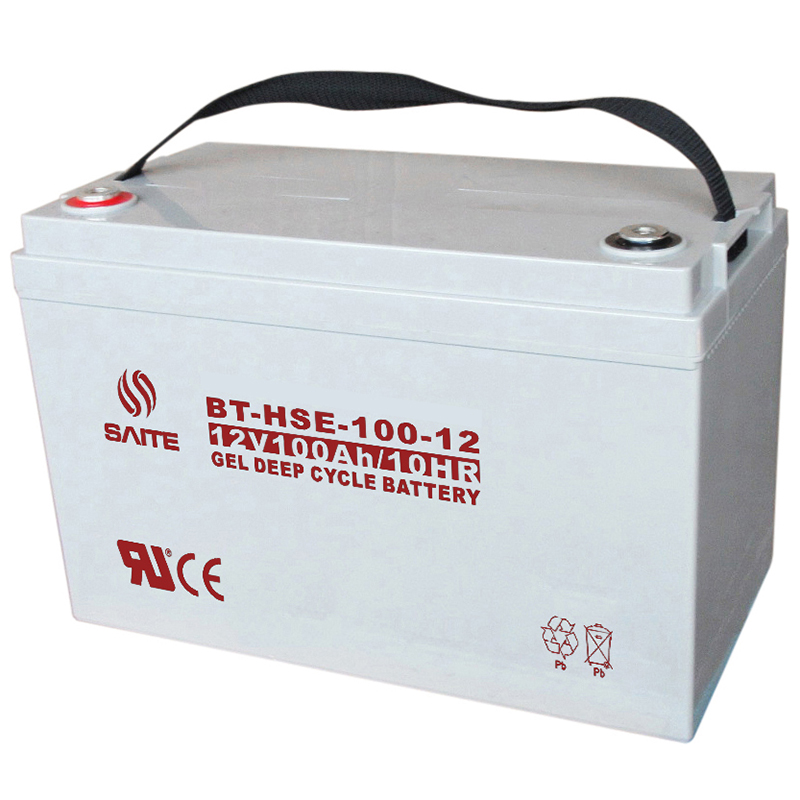

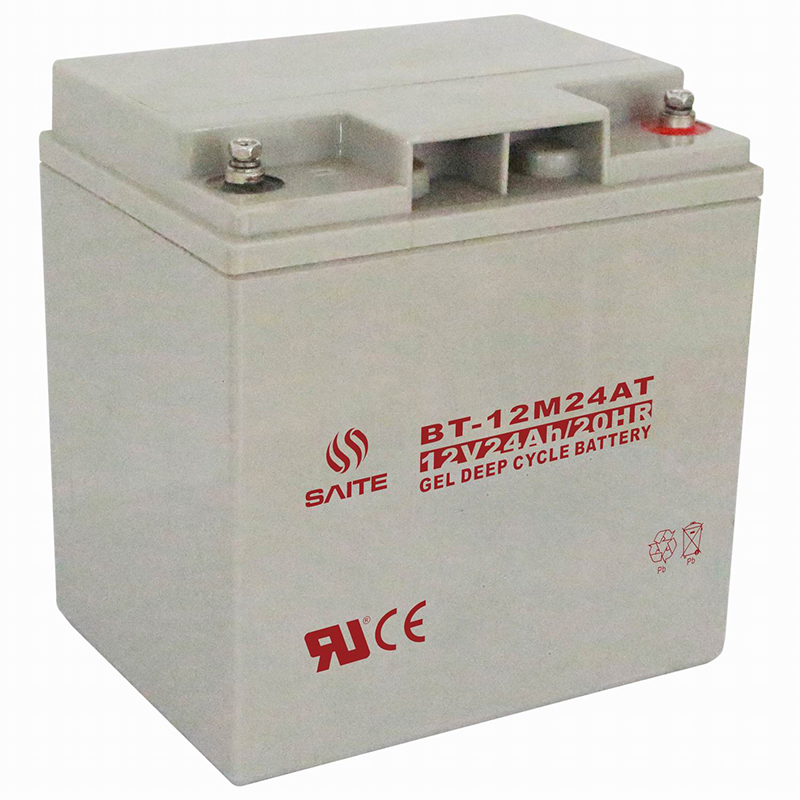

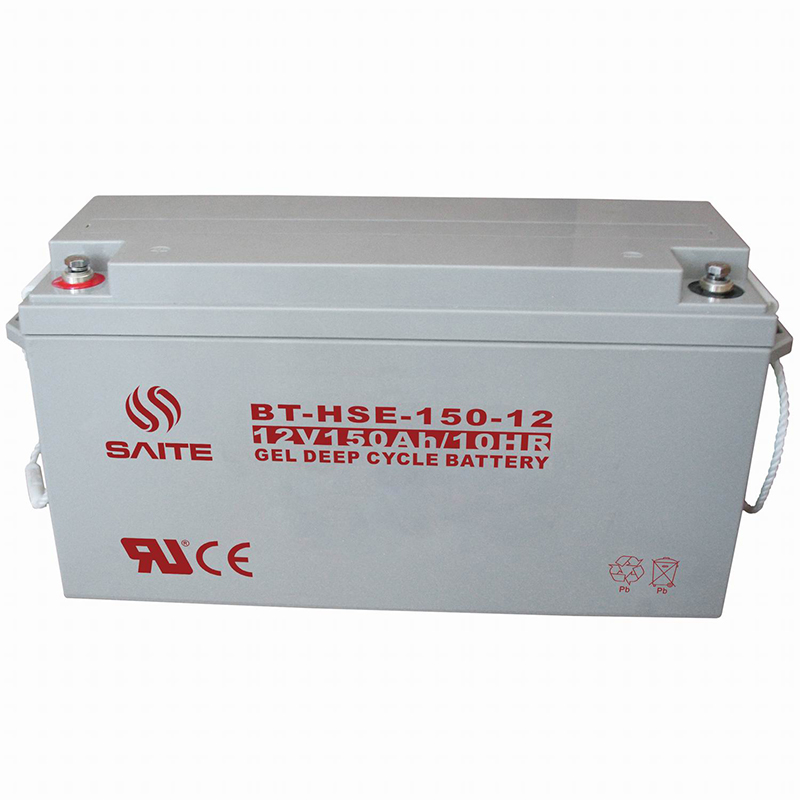

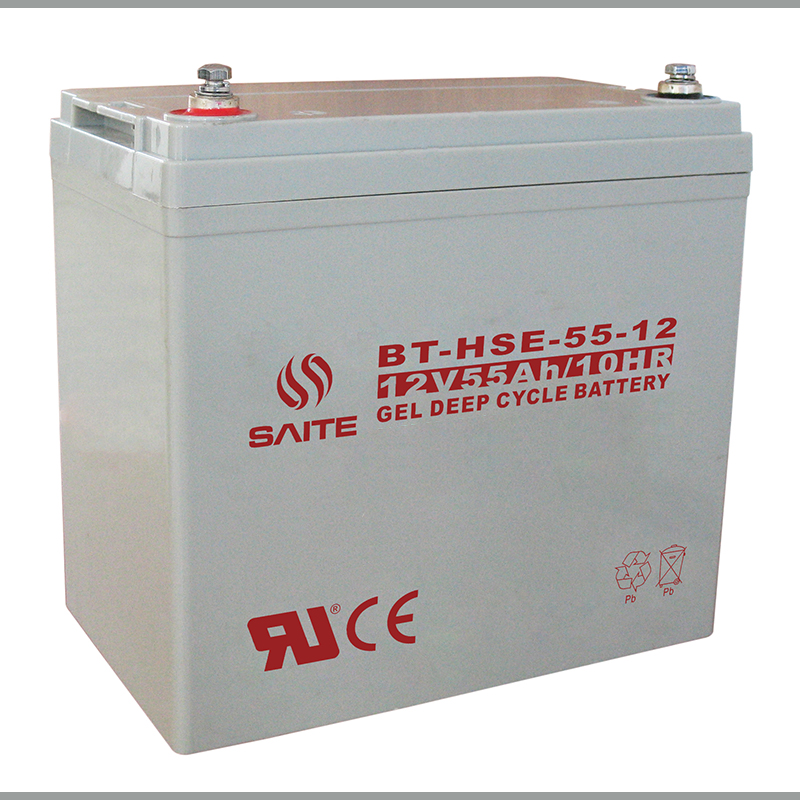

AGM Gel Battery
Maintenance Free Sealed Lead Acid AGM Gel Battery
Features
- Thick plates and high-density active material
- High power density
- Longer life in deep cycle applications
- Excellent recovery from deep discharge
- Extremely low self-discharge rate
- Wide operating temperature range from -20C~55C
Application: UPS Power Supply, Telecom Equipment, Power Station, Solar/wind energy storage system
Specifications
| Model | Nominal Voltage | Capacity | Dimension(mm/Kg[(5%)]) | Terminal | ||||
| (V) | (Ah) | Length | width | Height | Total Height | Weight | ||
| 12V31Ah | 12 | 31 | 195 | 130 | 155 | 180 | 10.2 | T7/T9 |
| 12V33Ah | 12 | 33 | 195 | 130 | 155 | 180 | 10.5 | T7/T9 |
| 12V38Ah | 12 | 38 | 195 | 130 | 155 | 180 | 12.5 | T7/T9 |
| 12V40Ah | 12 | 40 | 197 | 165 | 170 | 170 | 13.3 | T4/T9 |
| 12V42Ah | 12 | 42 | 197 | 165 | 170 | 170 | 14.1 | T4/T9 |
| 12V45Ah | 12 | 45 | 197 | 165 | 170 | 170 | 14.5 | T4/T9 |
| 12V50Ah | 12 | 50 | 229 | 138 | 208 | 230 | 16.5 | T5/T9 |
| 12V55Ah | 12 | 55 | 229 | 138 | 208 | 230 | 17.5 | T5/T9 |
| 12V60Ah | 12 | 60 | 260 | 168 | 211 | 233 | 20 | T5/T9 |
| 12V70Ah | 12 | 70 | 260 | 168 | 211 | 233 | 22.3 | T5/T9 |
| 12V75Ah | 12 | 75 | 260 | 168 | 211 | 233 | 23.2 | T5/T9 |
| 12V65Ah | 12 | 65 | 350 | 167 | 179 | 186 | 21.2 | T5/T9 |
| 12V80Ah | 12 | 80 | 350 | 167 | 179 | 186 | 23.5 | T5/T9 |
| 12V90Ah | 12 | 90 | 306 | 169 | 211 | 233 | 27 | T5/T9 |
| 12V100Ah | 12 | 100 | 331 | 173 | 213 | 233 | 30.5 | T5/T9 |
| 12V110Ah | 12 | 110 | 331 | 173 | 213 | 233 | 32.5 | T5/T9 |
| 12V120Ah | 12 | 120 | 409 | 176 | 225 | 225 | 35 | T5/T11 |
| 12V134Ah | 12 | 134 | 342 | 172 | 280 | 285 | 42.5 | T11 |
| 12V150Ah | 12 | 150 | 485 | 172 | 240 | 242 | 44.5 | T5/T11 |
| 12V200Ah | 12 | 200 | 522 | 238 | 218 | 238 | 61 | T5/T11 |
| 12V225Ah | 12 | 225 | 522 | 238 | 218 | 238 | 64 | T5/T11 |
| 12V230Ah | 12 | 230 | 529 | 268 | 220 | 241 | 61.5 | T12 |
| 12V250Ah | 12 | 250 | 529 | 268 | 220 | 241 | 64.5 | T12 |
